Introduction
Rocker switches are among the most recognizable and widely used manual switches in modern electrical equipment. Their simple rocking action makes them easy to operate. Specifically, the ergonomic design reduces operator fatigue during repeated use. If your equipment requires straightforward on-off control with clear visual status, rocker switches offer an excellent balance of form and function.
How Rocker Switches Work
Rocker switches operate through a simple mechanical action. The actuator rocks back and forth when pressed, opening or closing the electrical contacts inside. The switch maintains its position until you press it again. Some models feature momentary contacts that return to the original position when released. A spring mechanism inside provides the tactile feedback. Visual indicators, including colored actuators or integrated LEDs, show the switch status. This simple, reliable mechanism ensures consistent performance over thousands of cycles.
Key Features of Rocker Switches

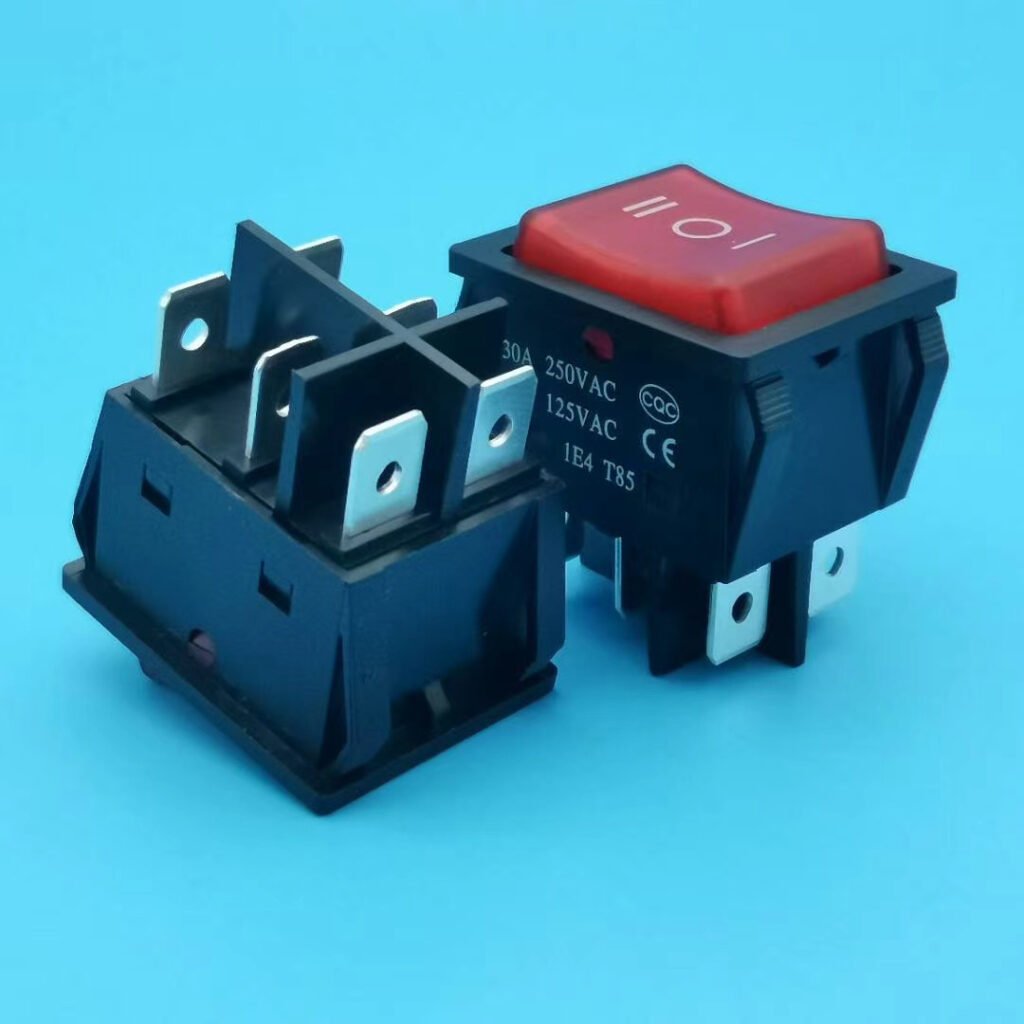

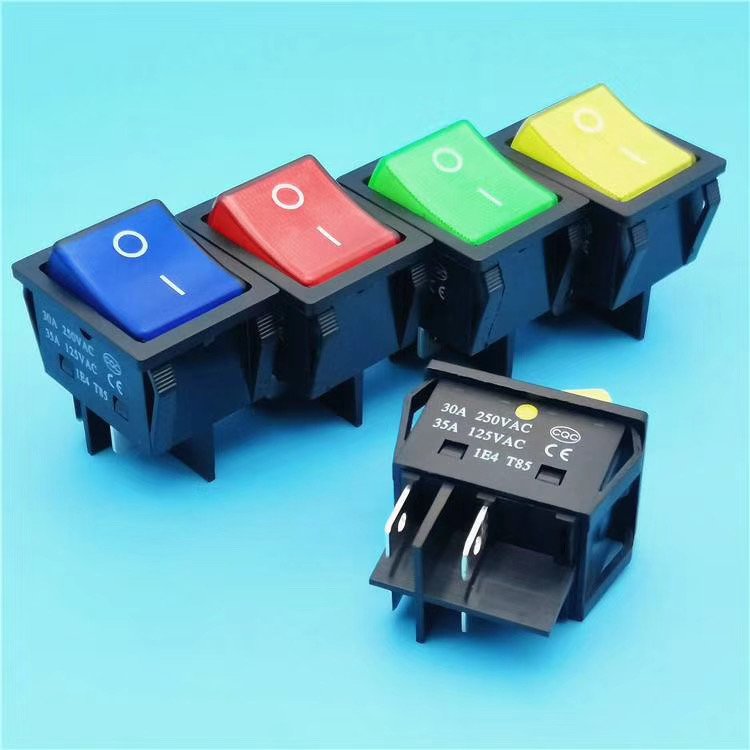

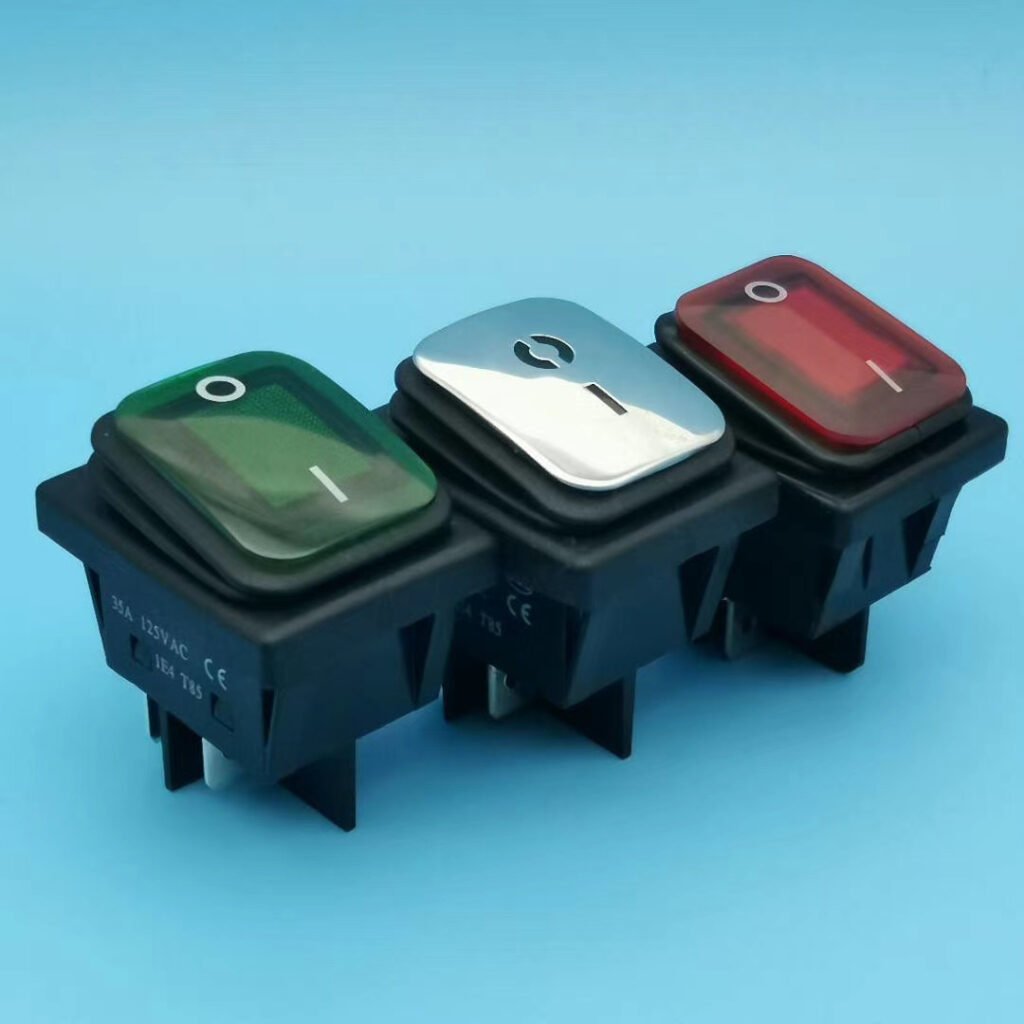

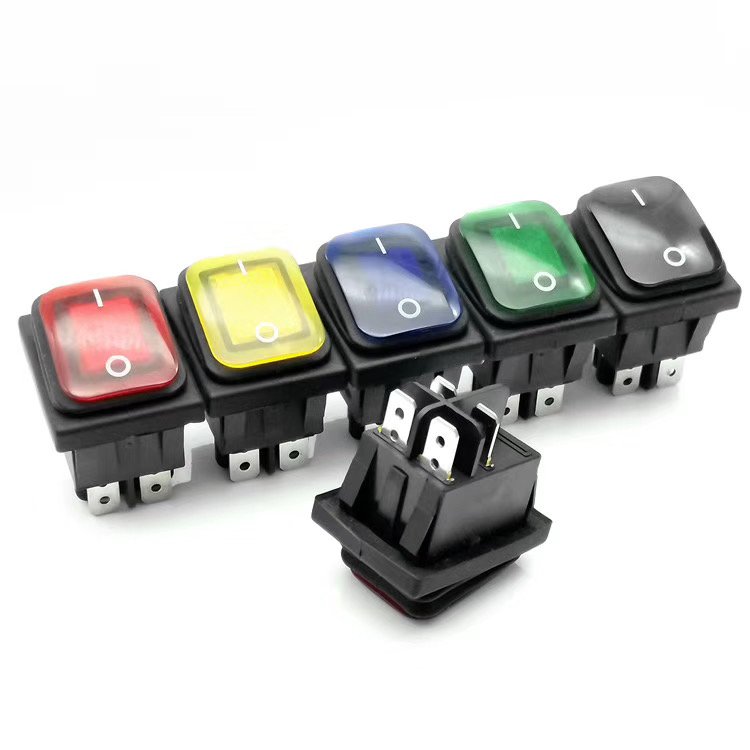

Rocker switches incorporate several features that make them versatile for various applications. First, they offer multiple actuator colors for visual indication. Red typically indicates power on, while black or white suits general applications. Second, they are available in various illumination options. LED-illuminated rockers provide clear status indication in low-light conditions. Third, they offer flexible termination options. Solder terminals, quick-connect tabs, and PCB mount styles suit different installation needs. Fourth, many models feature IP ratings for protection against dust and moisture. Fifth, the rocker design provides comfortable operation with minimal force.
Benefits of Rocker Switches
Rocker switches deliver several important advantages. First, they are user-friendly. The large actuator surface allows easy operation, even with gloves. Second, they provide clear visual feedback. The rocker position indicates the switch state at a glance. Third, they are durable. Quality rocker switch achieve up to 100,000 electrical operations. Fourth, they are versatile. Available ratings range from low-level signal switching up to 20A at 250VAC. Fifth, they are cost-effective. The simple design makes them economical for high-volume applications.
Common Applications
Rocker switches serve many applications across various industries. In household appliances, they control power to devices like lamps, fans, and coffee makers. In medical equipment, they serve as power switches on diagnostic devices. In industrial control panels, they provide manual override functions. In automotive applications, they control auxiliary lighting and accessories. In power distribution, they function as on-off switches for equipment. In consumer electronics, they appear as power buttons on monitors and audio equipment. Their versatility makes rocker switch a popular choice for both consumer and industrial applications.
Selecting the Right Rocker Switch
Choosing the appropriate rocker switch requires evaluating several factors. First, determine the electrical rating needed. Consider both voltage and current requirements. Next, select the actuator type. Momentary or maintained action depends on your application needs. Consider the mounting style. Panel mount, PCB mount, and snap-in styles suit different installations. Evaluate the illumination requirements. LED-illuminated models provide clear visual status indication. Check the environmental conditions. Sealed models with IP ratings suit dusty or damp environments. Also, consider the actuator marking. Some applications require custom legends or symbols.
Conclusion
Rocker switch provide convenient, reliable circuit control for a wide range of applications. Their ergonomic design, clear visual feedback, and durable construction make them suitable for both consumer and industrial use. When you need straightforward on-off control with minimal operator effort, rocker switches deliver consistent performance. By selecting the right electrical rating, actuator type, and mounting style for your application, you can achieve reliable operation for years to come.
