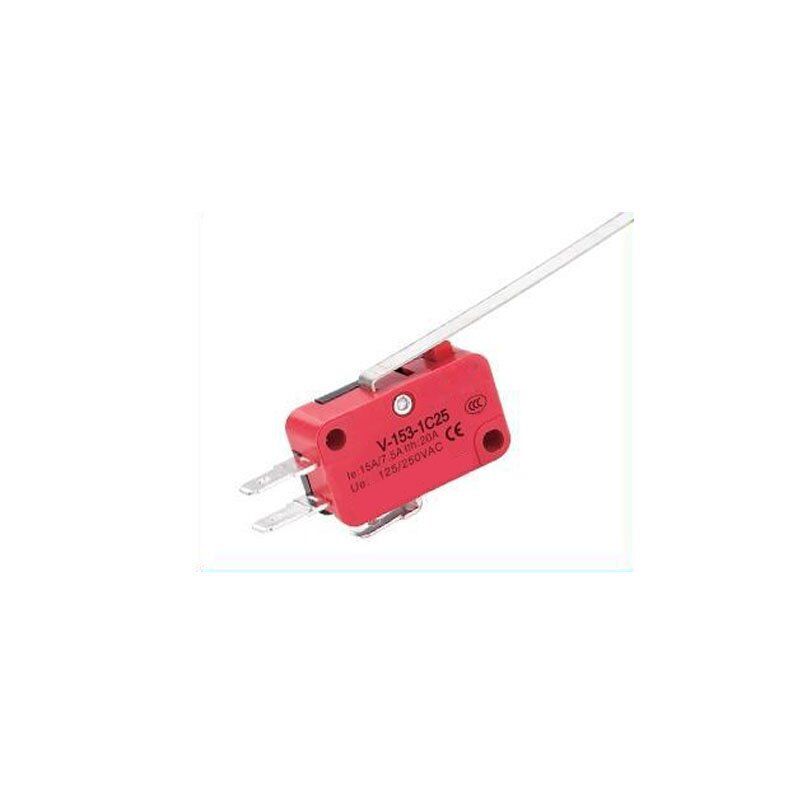

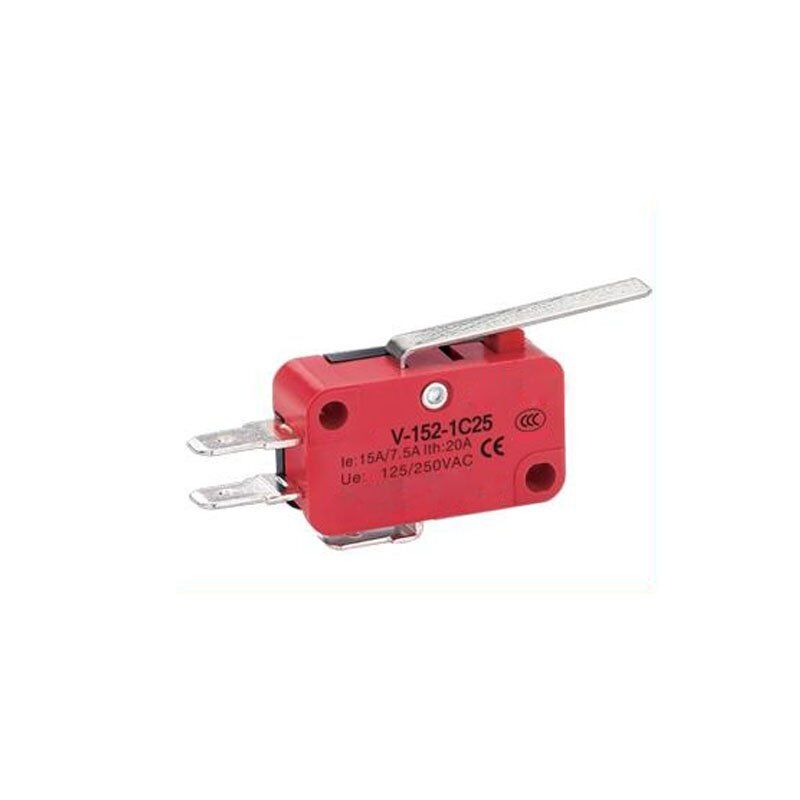

SYV-151-1C25/V-152-1C25/V-152-2C25/V-153-1C25/V-154-1C25 15A/250VAC Short straight bar type Micro Switch
Short straight bar type Micro Switch:

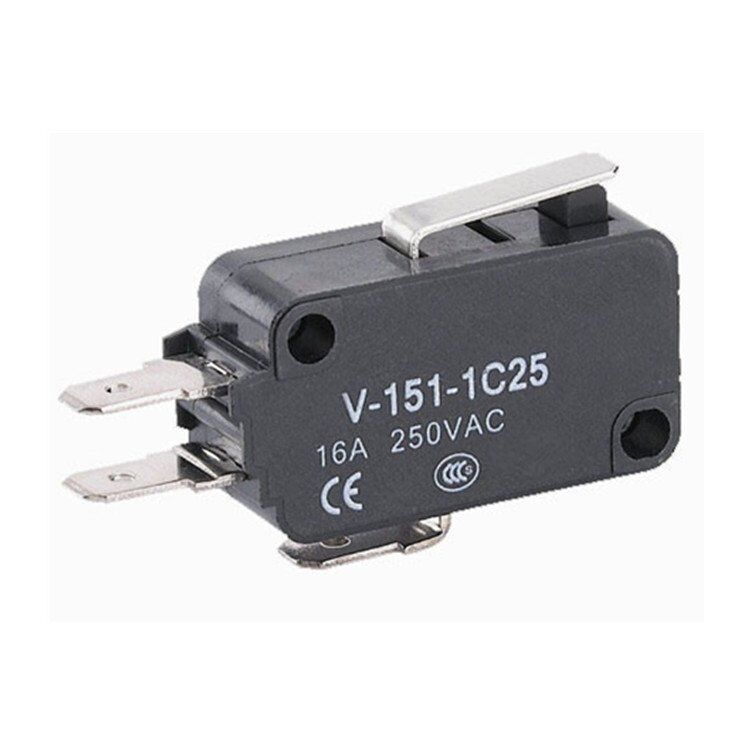

Model Number: V-151-1C25
Rating at: 16A/250VAC
Adopt thermosetting plastic or thermoplastic;
Small contact gap, snap action, high sensitivity and smalloperating travel;
Variety of levers;
Widely used in appliance, electronic equipment ,automaticmachine,
communication equipment, car electric, apparatusand instrument,
electro motion tool etc.
Parameter
Additional information
| Brand Name | ZJSHUYI |
|---|---|
| Model Name | Short straight bar type micro switch |
| Max. Current | 15A |
| Operating Temperature | -25℃ to +85 ℃ |
| Product name | push button micro switch |
| Application | Home appliance,electronic device,auto electronic,automation |
| Material Body | PBT cover and PC base |
| Max. Voltage | 250VAC |
| Protection | IP40 |
| Mechanical Life | 1,000,000 times above |
| Electrical life | 100,000 times above |
| Colour | black, red, white |
| Operating speed | 0.1mm-1m/s |
| Model Number | V-151-1C25 |
| Characteristics | Compact Design |
| Opearting force | 25g(0.245N)-400g(3.92N) |
| Place of Origin | Zhejiang, China |

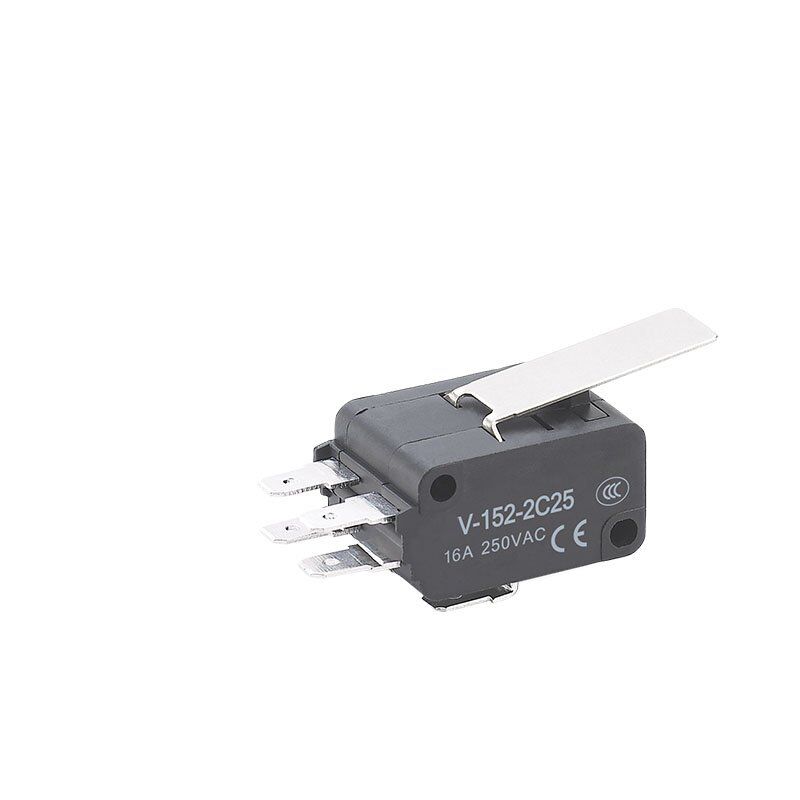

| Model | V-151-1C25, V-152-1C25, V-152-2C25, V-153-1C25 |
SYV-151-1C25/V-152-1C25/V-152-2C25/V-153-1C25/V-154-1C25 15A/250VAC Short straight bar type Micro Switch
Application attentions:
1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;
2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;
3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;
4.The immediate cause for broken is stress and attack, please pay attention;
5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
