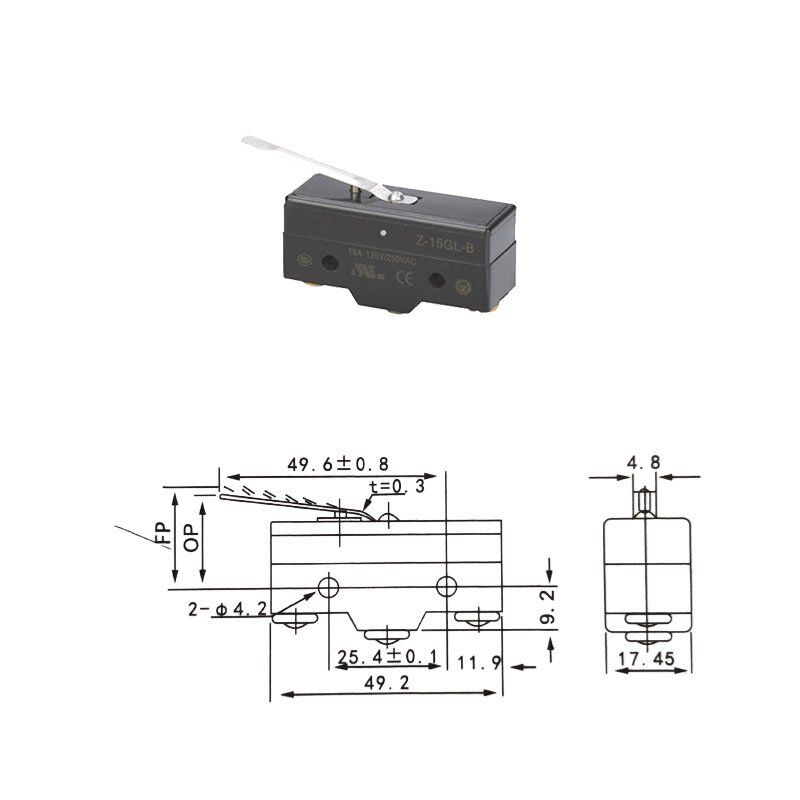

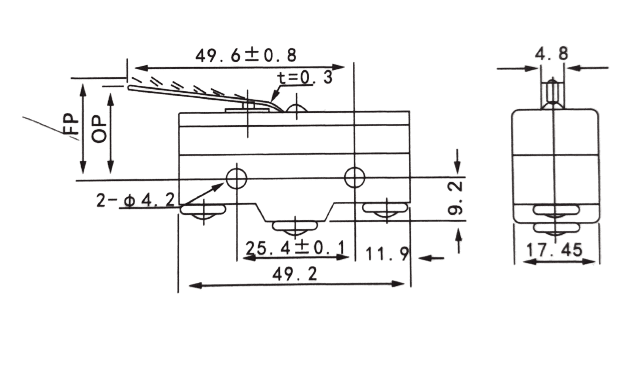

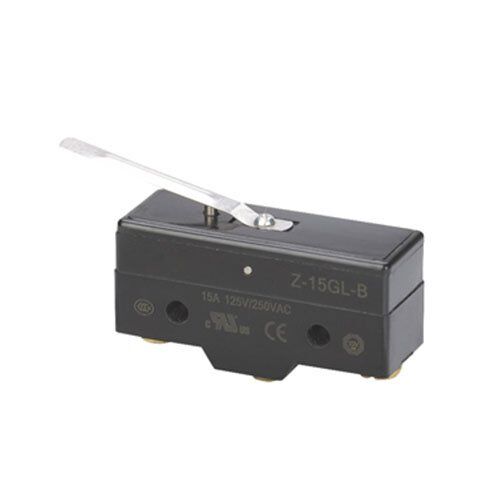

SYZ-15GL-B 15A/250VAC Pivot reverse handle type Micro Switch

Pivot reverse handle type Micro Switch:
Model Number:Z-15GL-B

Rating at: 16A/250VAC
Adopt thermosetting plastic or thermoplastic;
Small contact gap, snap action, high sensitivity and smalloperating travel;
Variety of levers;
Widely used in appliance, electronic equipment ,automaticmachine,
communication equipment, car electric, apparatusand instrument,
electro motion tool etc.



Brand Name


Model Number


Model Name

Pivot reverse handle type

Max. Current


Operating Temperature

-25℃ to +85 ℃

Product name

push button micro switch


Home appliance,electronic device,auto electronic,automation

Material Body

PBT cover and PC base

Max. Voltage




Mechanical Life

1,000,000 times above

Electrical life

100,000 times above



Operating speed



Compact Design

Opearting force


Place of Origin

Zhejiang, China

SYZ-15GL-B 15A/250VAC Pivot reverse handle type Micro Switch

Application attentions:

1.According to the difference of load and current value, rated loadshould be taken note.Current value of this series is 10A and 15A;

2.When transporting and moving, pls take note of the short circuit
or open circuit may happen in internal wiring;

3.Please take note of the level of protection when used in water, oil and
bug dust.This series has protective type and unprotective type;

4.The immediate cause for broken is stress and attack, please pay attention;

5.Warning mark’Danger! High Voltage!’ and’Take note!’ remind us
pay attention to personnel safety and correctly operation.
